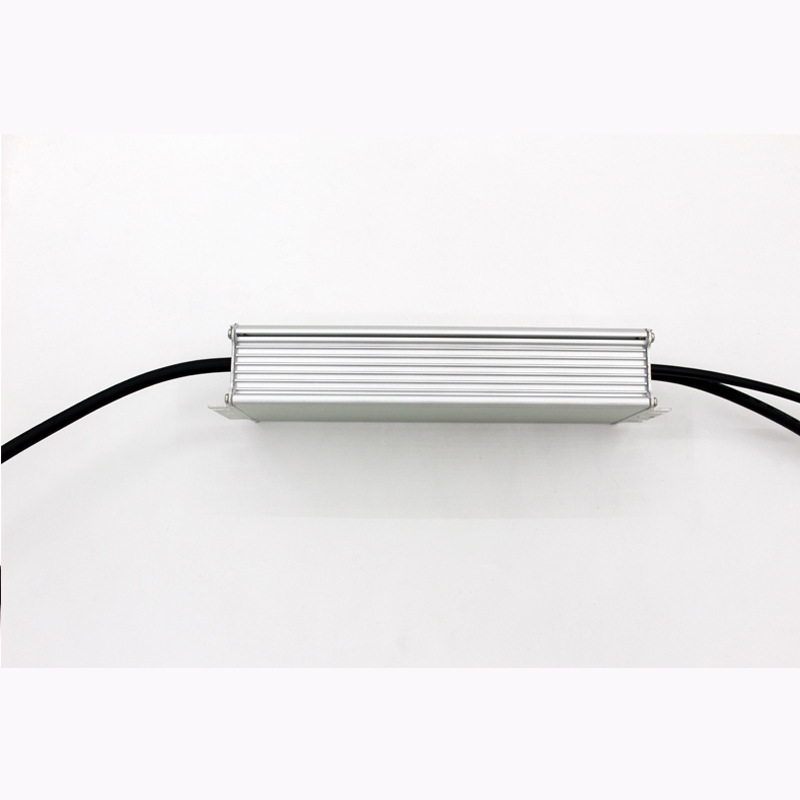

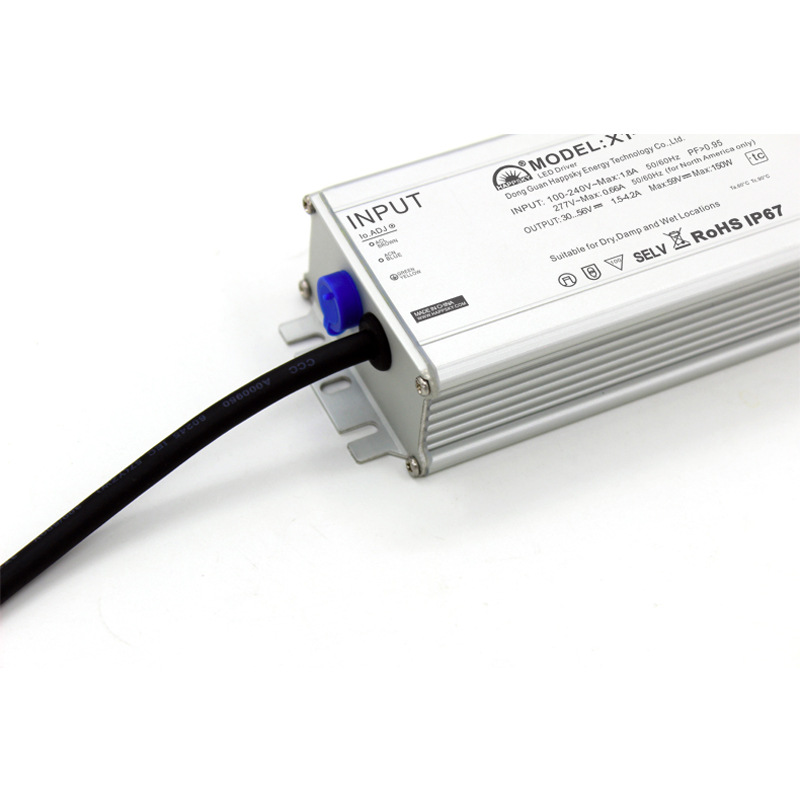

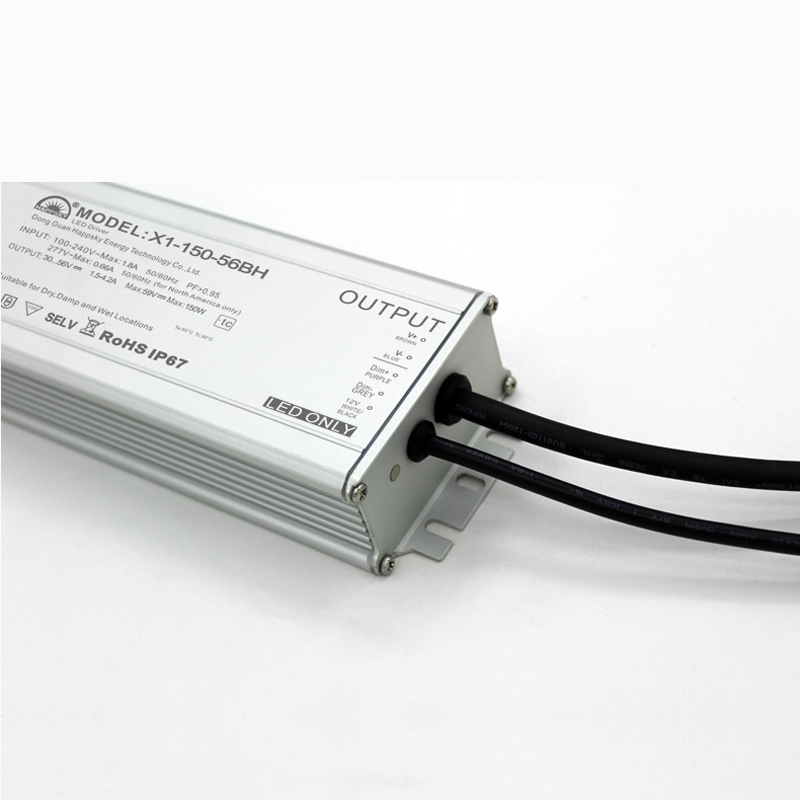

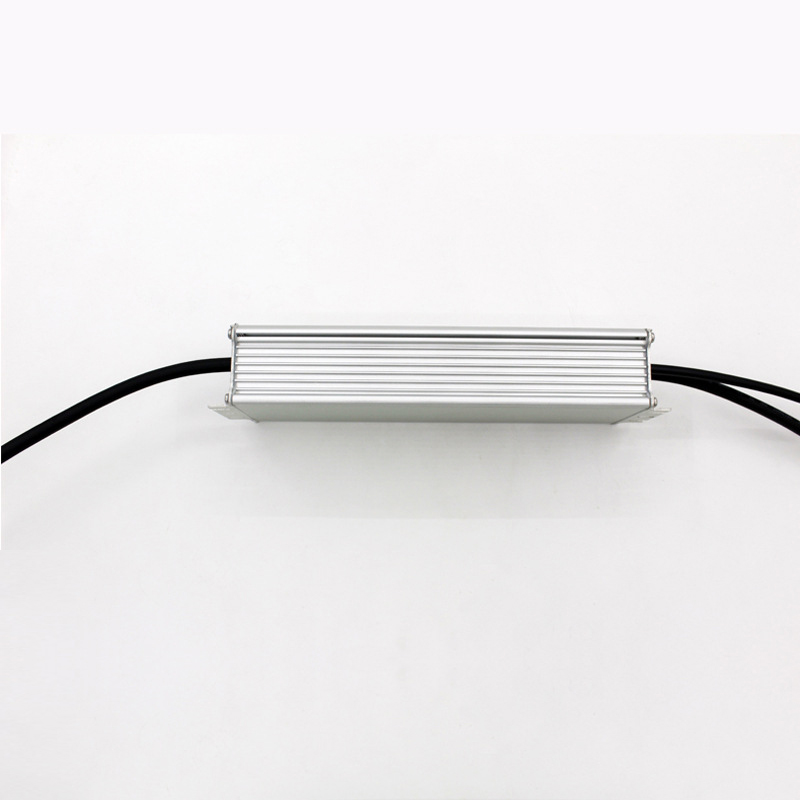

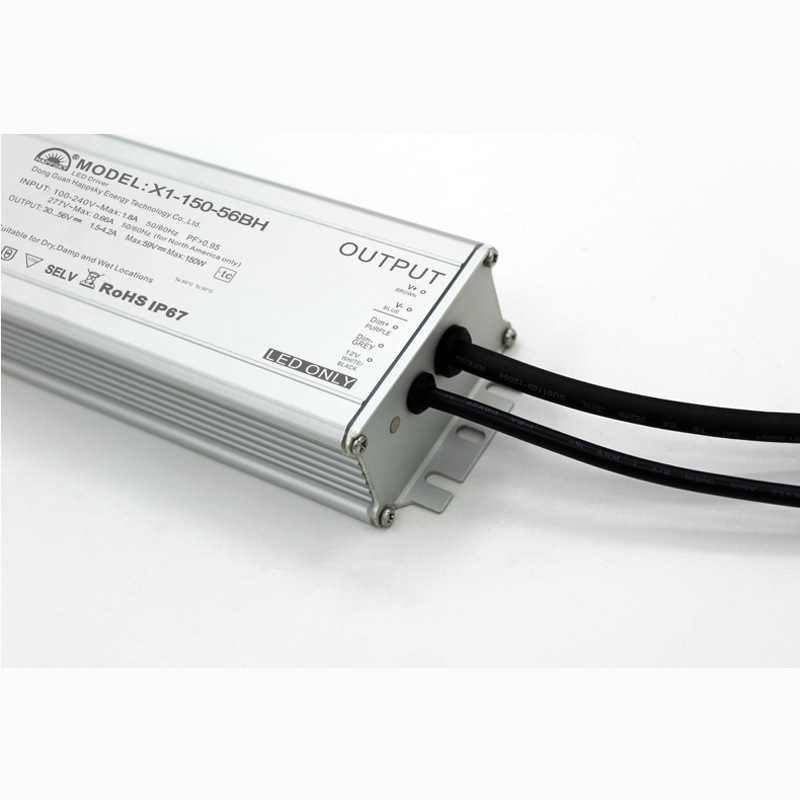

Series: X1-185-56 series LED drive power
Power: 320W
Application: High bay lights, high pole lights, stage lighting and street lights
Certificate: UL/CUL, TUV, SAA, CCC, CE
Warranty: 7 years
Happsky Patent Case
Input voltage range: 90-305V
Two-stage circuit, no strobe.
Protection function: short circuit protection, over current protection, over voltage protection, over temperature protection.
Up to 95% efficiency
Three-in-one dimming (isolated dimming can turn off standby power consumption ≤0.5W, continuous dimming can meet DLC5.1)
Lightning protection: 6kV/10kV
Independent auxiliary power supply 12V/24V

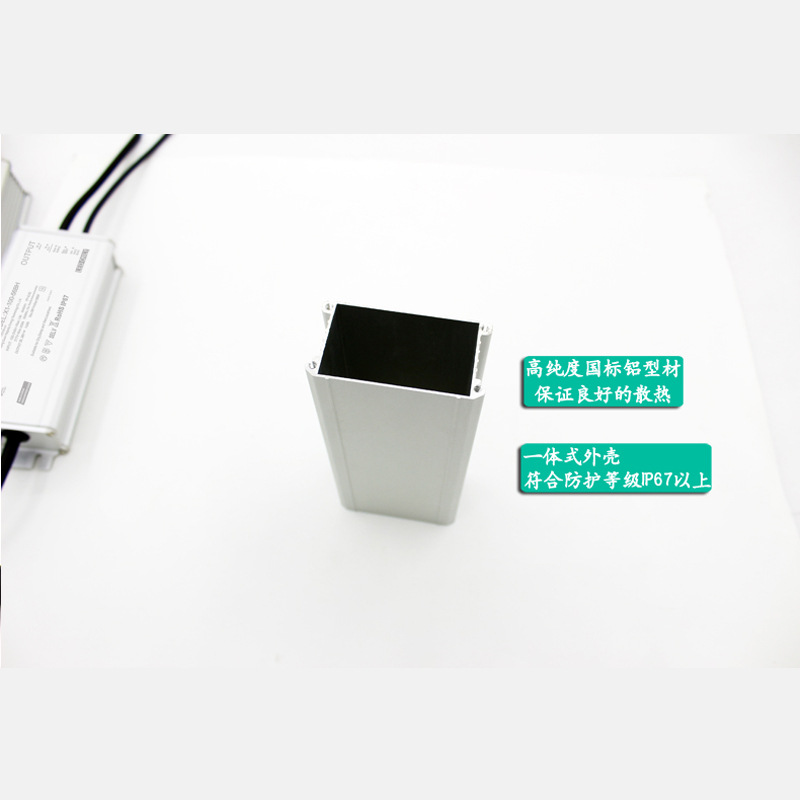

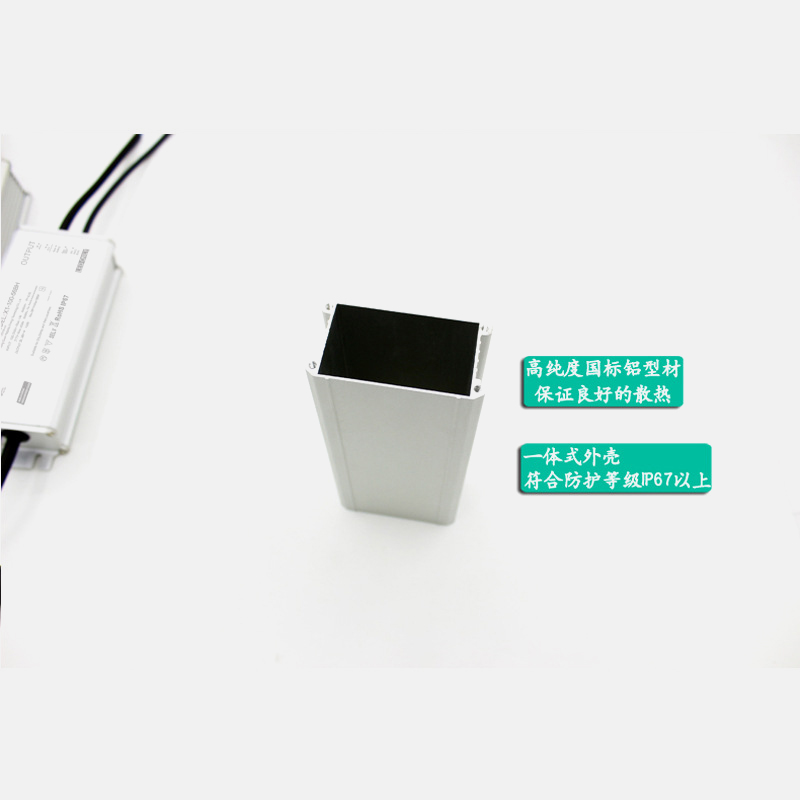

IP67
5 years warranty
| Rated input voltage | 100---277Vac |
| Rated output current (at 230 V, 50 Hz) | 4.1-10A |
| Input frequency range | 47-63Hz |
| Leakage current (at 230 V, 50 Hz, full load) | |
| Maximum input power | |
| Output power range | |
| THD (at 230 V, 50 Hz, full load) | <8% |
| Output current accuracy | ±5% |
| Start-up time (at 230 V, 50 Hz, full load) | 2 S Max. |
| Ambient temperature(Ta) | 60℃ |
| Case temperature(Tc) | 85℃ |
| Storage temperature | -40℃-85℃ |
| Dimensions (L x W x H) | 252mm*90mm*45mm |
| Lightning protection level |

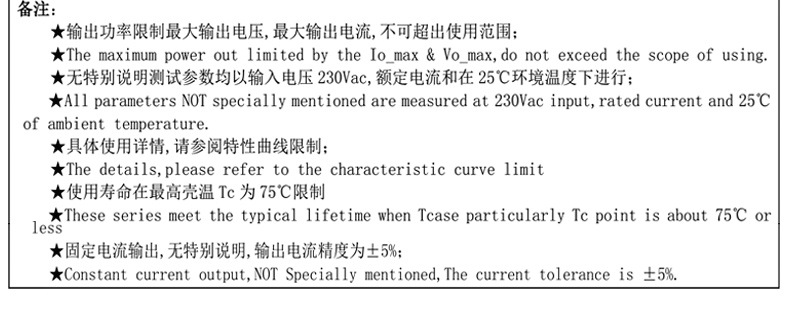

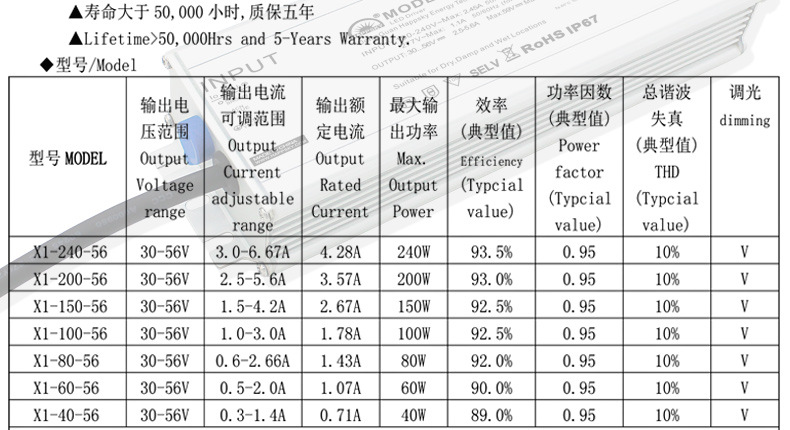

X1-185-56 series LED drive power supply specification
